The Status tab displays the active Dynamic Routing information.
-

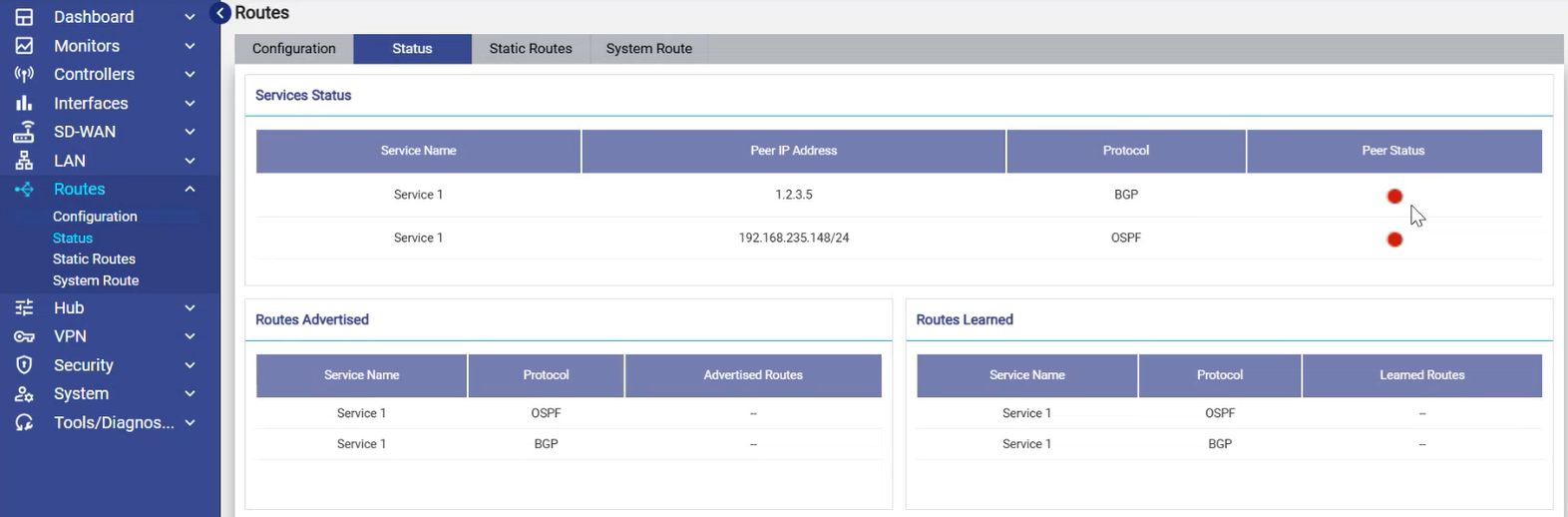

Select Routes from the side menu bar and click the Status tab, see figure below (example with active routing services).
Services Status
The Services Status section shows the following columns:
-
Service Name
-
Peer IP Address
-
Protocol (OSPF/BGP)
-
Peer Status (Green = Up, Red = Down)
This helps confirm whether neighbours are successfully establishing routing sessions.
Routes Advertised
This section shows the routes that the router has shared with its neighbours, with the columns Service Name, Protocol and Advertised Routes.
Routes Learned
This section shows the routes received from neighbours, with the columns Service Name, Protocol and Learned Routes.
If no Dynamic Routing service is configured, each section displays No Records Found.
