Epic Mini Firewall - Application Examples

Epic Mini Firewall and Starlink

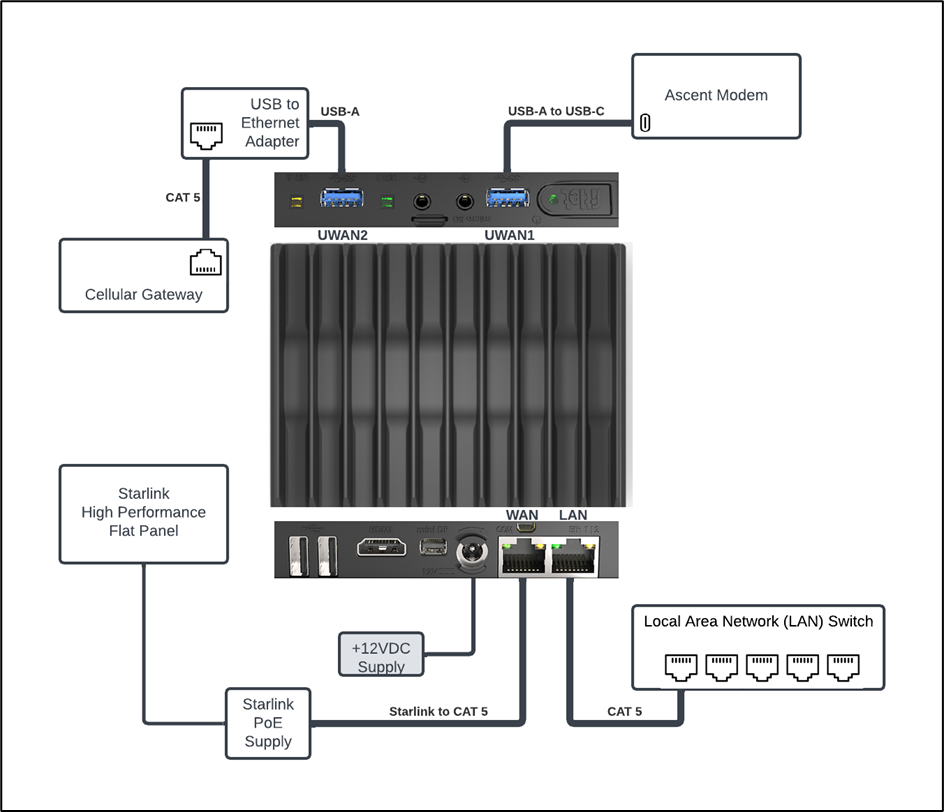

The figure below shows a common configuration of Epic Mini Firewall using: Starlink, an Ethernet Cellular Gateway, a USB-C Ascent Modem, and an ethernet LAN switch.

**Epic Mini Firewall Example with Starlink and 5G**

Epic Mini Firewall and Starlink, with USB Ethernet WAN Expansion

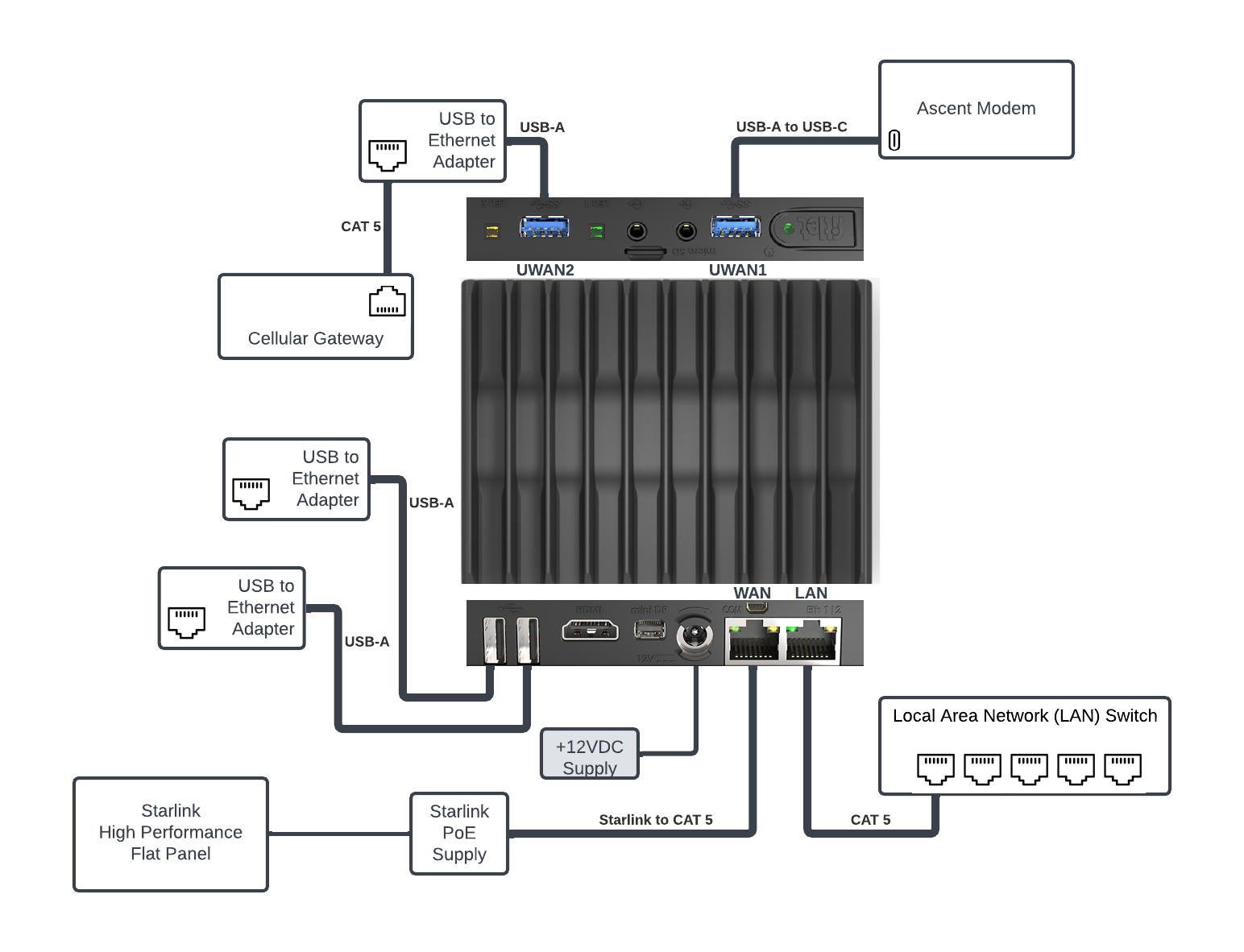

The figure below shows a common configuration of Epic Mini Firewall using: Starlink, an Ethernet Cellular Gateway through a USB to Ethernet expansion dongle, a USB-C Ascent Modem, an ethernet LAN switch, and two USB to Ethernet dongles for additional WAN sources.

0_0?a=2295&x=-272&y=-225&w=1544&h=1182&store=1&accept=image%2F*&auth=LCA%209e491cf6dfeb224c604cc839771cd43c9fc596efe1110374e3dc65c6257239a9-ts%3D1711500545 — **Epic Mini Firewall Example using Ethernet Adapters for WAN expansion**

Epic Mini Firewall SD-WAN for Multi-Orbit VSAT with 5G

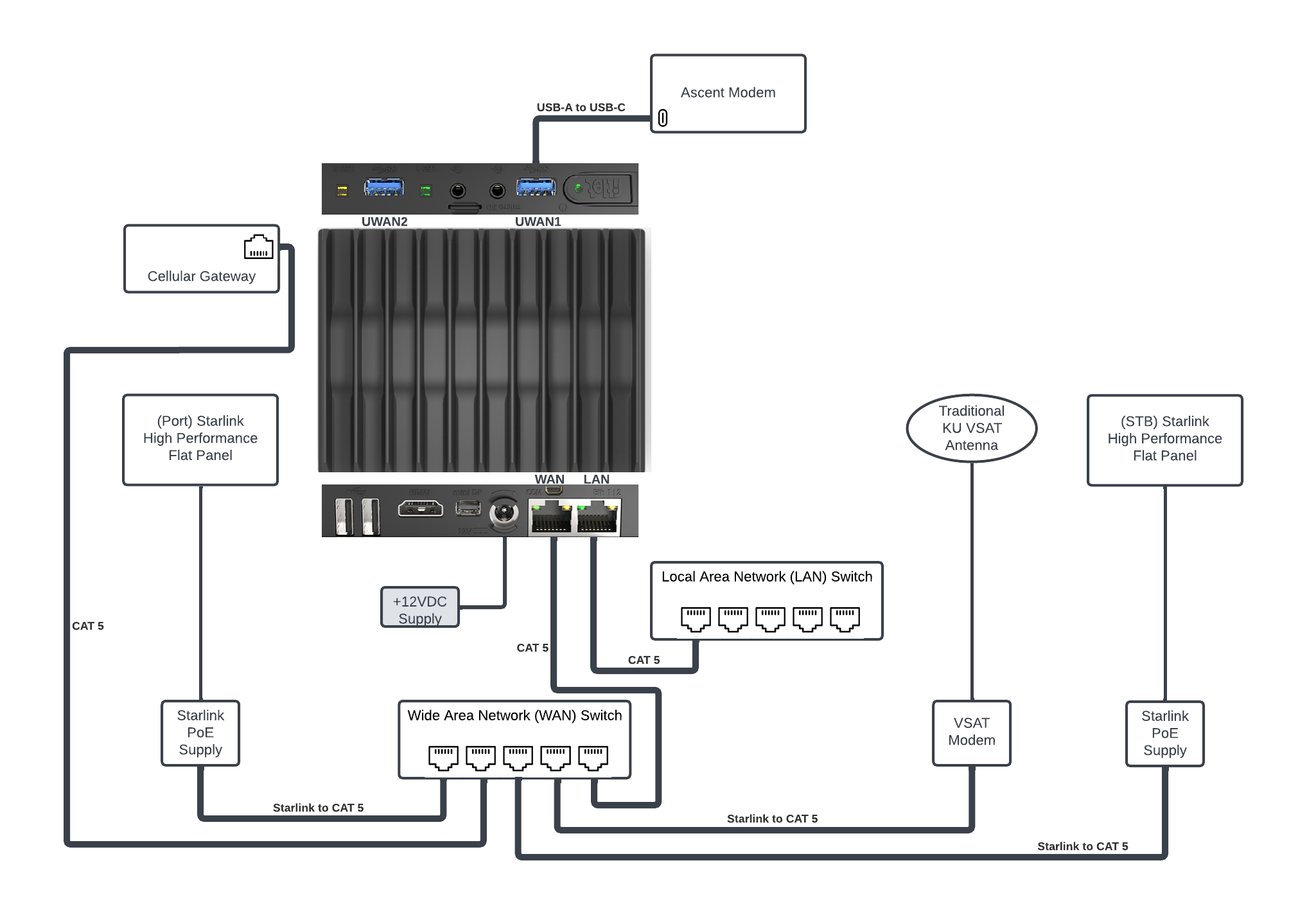

The figure below shows a common configuration of Epic Mini Firewall using: An ethernet LAN switch, a USB-C Ascent Modem 5G, and a 5-port ethernet switch for WAN selection of: Dual Starlink Terminals, a KU VSAT Terminal, and an Ethernet Cellular Gateway.

CoORUxPSAWsY?a=2154&x=-919&y=140&w=2049&h=1410&store=1&accept=image%2F*&auth=LCA%20dbcdee36126d1d2c78ae69f360d3c577d74eca7c98b54955dbd3059e39b9ffd7-ts%3D1711500545 — **Epic Mini Firewall Example with Dual Starlink, VSAT, and Dual 5G Modems**
