Epic Mini Firewall - Application Examples

The figure below shows a common configuration of Epic Mini Firewall using: Starlink, an Ethernet Cellular Gateway, a USB-C Epic WaveLink 5G, and an ethernet LAN switch.

Epic Mini Firewall Example with Starlink and 5G

Epic Mini Firewall and Starlink, with USB Ethernet WAN Expansion

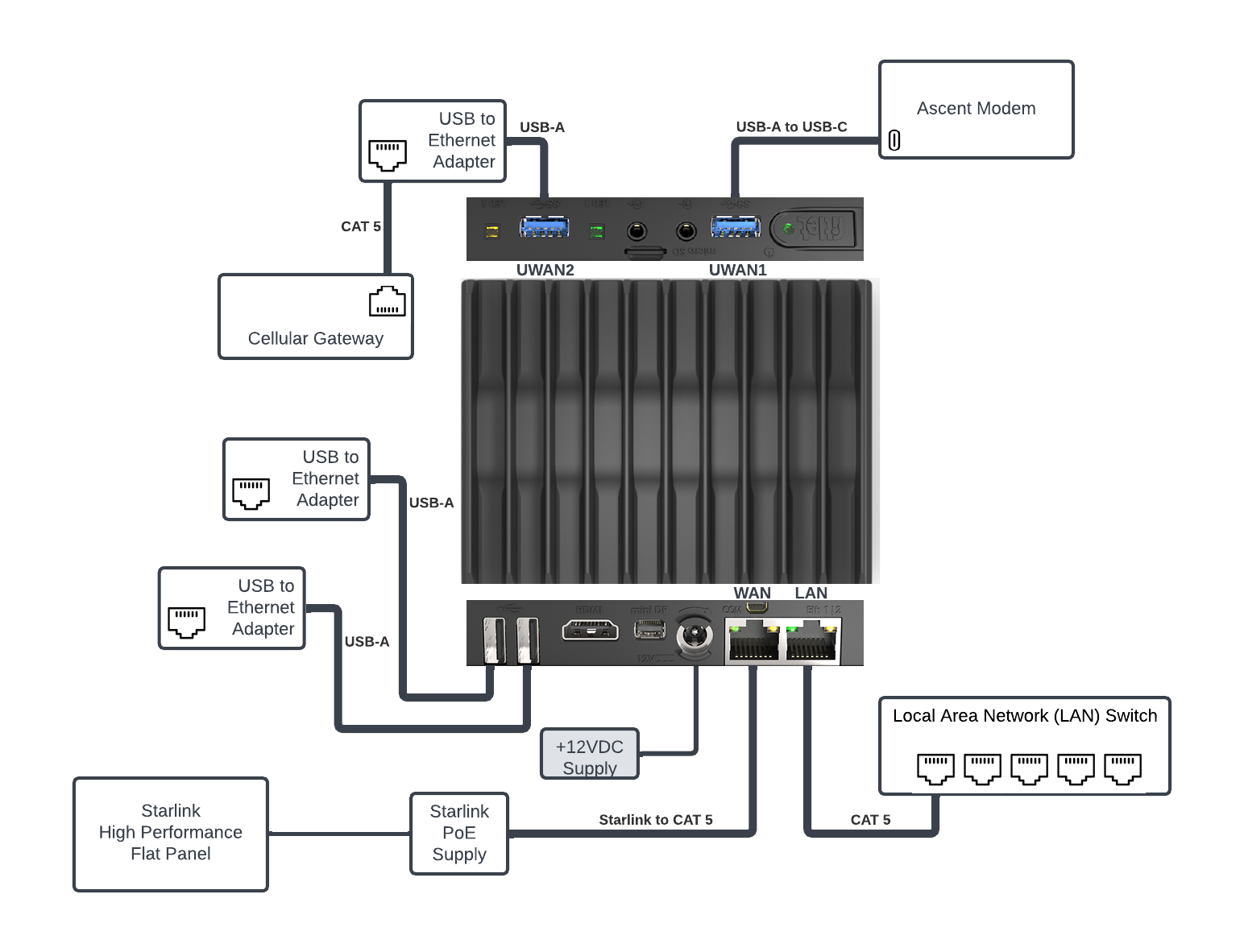

The figure below shows a common configuration of Epic Mini Firewall using: Starlink, an Ethernet Cellular Gateway through a USB to Ethernet expansion dongle, a USB-C Epic WaveLink 5G, an ethernet LAN switch, and two USB to Ethernet dongles for additional WAN sources.

Epic Mini Firewall Example using Ethernet Adapters for WAN expansion

Epic Mini Firewall SD-WAN for Multi-Orbit VSAT with 5G

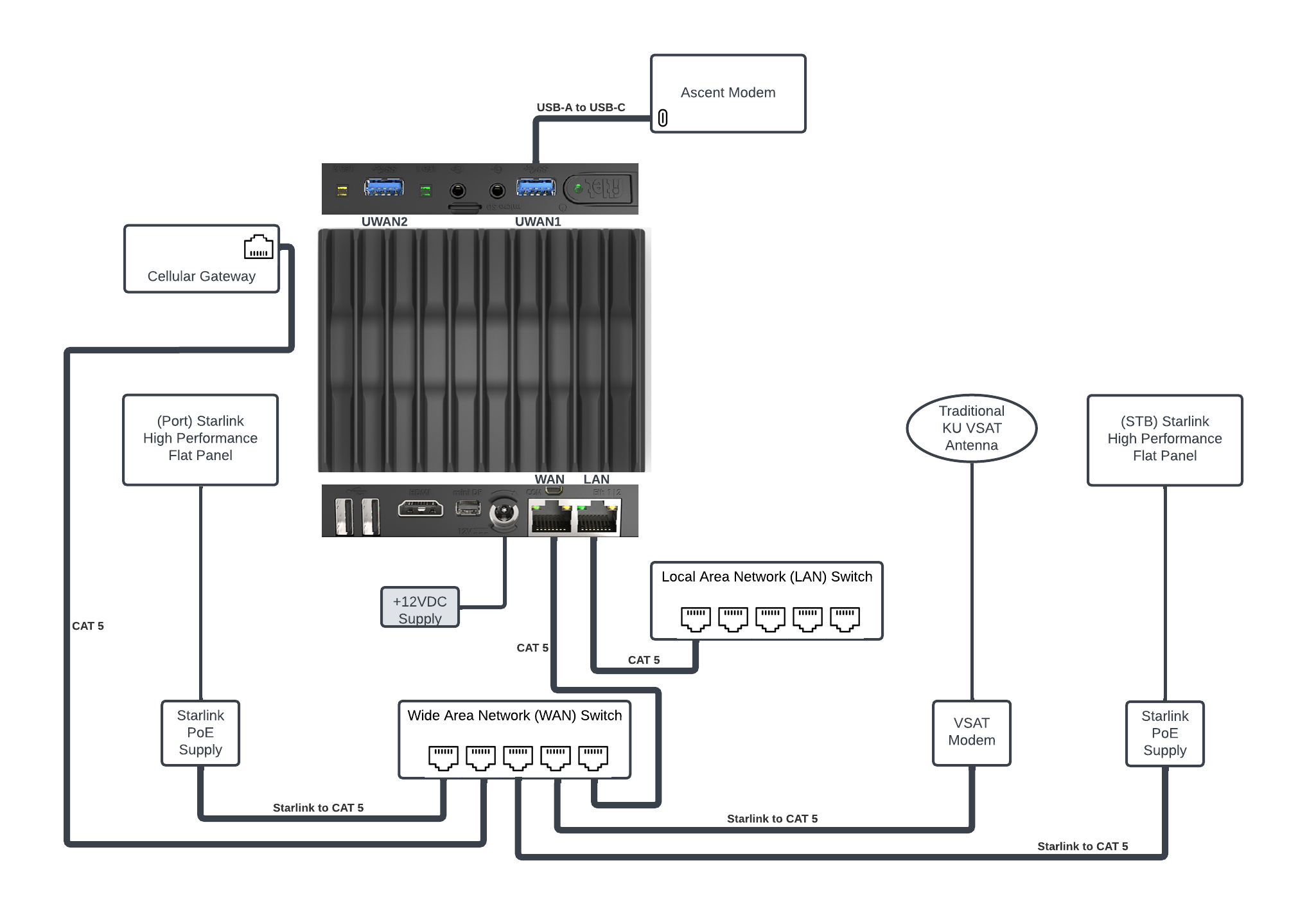

The figure below shows a common configuration of Epic Mini Firewall using: An ethernet LAN switch, a USB-C Epic WaveLink 5G 5G, and a 5-port ethernet switch for WAN selection of: Dual Starlink Terminals, a KU VSAT Terminal, and an Ethernet Cellular Gateway.

Epic Mini Firewall Example with Dual Starlink, VSAT, and Dual 5G Modems
