SNMP

SNMP Overview

Simple Network Management Protocol (SNMP) is a protocol for managing and monitoring network devices efficiently. EpicOS supports SNMP read functionality, allowing network administrators to use SNMP queries to extract device information and monitor network performance.

This guide briefly describes the SNMP functionality and explains how to utilize the supported Management Information Base (MIB) tables for effective network management.

Supported SNMP and MIBs

SNMP Versions: EpicOS supports SNMPv2c

MIBs: EpicOS supports standard system and interface MIBs. These MIBs define a set of variables that EpicOS exposes for SNMP operations, such as querying system information or interface metrics.

Configuring SNMP on EpicOS

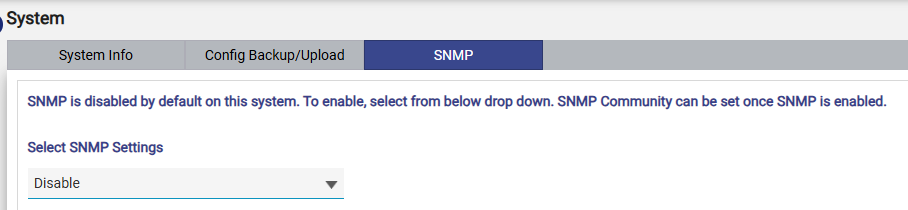

Enable SNMP: In EpicOS, access the SNMP settings by navigating to Menu → Configuration → General Settings → SNMP

Enable SNMP by toggling the option to Enable.

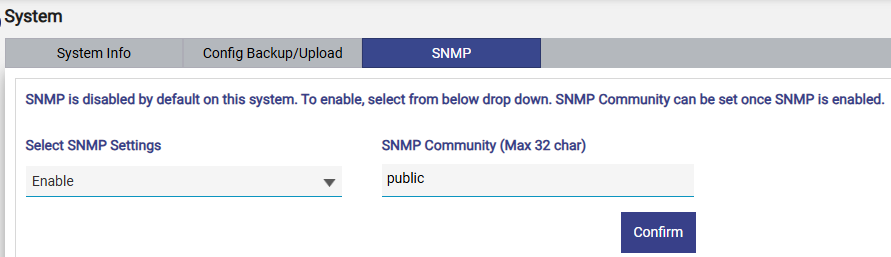

Set Community Strings: Define Community strings for authentication. The Community string acts as the password that allows read access to the device's MIB information.

MIB Object Identifier (OID) Tables

No specific MIB file is provided for download, as the standard system interface MIB is supported. The following table lists specific identifiers available from the EpicOS system.

System MIB OID	Details
1.3.6.1.2.1.1.1 - sysDescr	System Type
1.3.6.1.2.1.1.2 - sysObjectID	1.3.6.1.2.1.1
1.3.6.1.2.1.1.3 - sysUpTime	System uptime
1.3.6.1.2.1.1.4 - sysContact	Sat-Elite NOC Contact
1.3.6.1.2.1.1.5 - sysName	SiteName
1.3.6.1.2.1.1.6 - sysLocation	Device Name (if configured)
1.3.6.1.2.1.1.7 - sysServices	Device Serial Number

The following table lists the specific interfaces available:

ifMIB OID	Details
1.3.6.1.2.1.2.2.1.1 - ifIndex	All the configured/available WAN/LAN/Management interfaces are listed Index 1x - LAN Index 3x - WAN and WAN sub interfaces Index 5x - Management Interfaces
1.3.6.1.2.1.2.2.1.2 - ifDescr	Interface Alias Name
1.3.6.1.2.1.2.2.1.3 - ifType	All the interface will be reported “ethernet” (6), inbuild WiFi and LTE interfaces will be reported as “others (1)”
1.3.6.1.2.1.2.2.1.4 - ifMtu	defaults to 1400
1.3.6.1.2.1.2.2.1.5 - ifSpeed	Applicable for ethernet interfaces. (String)
1.3.6.1.2.1.2.2.1.6 - ifPhysAddress	MAC address for ethernet interface
1.3.6.1.2.1.2.2.1.7 - ifAdminStatus	Enabled/ Disabled status of the interface
1.3.6.1.2.1.2.2.1.8 - ifOperStatus	(1) Up - Interface Up / Internet Up (2) Down - Interface Down / No Internet (3) Interface Up/No Internet
1.3.6.1.2.1.2.2.1.10 - ifInOctets	Interface Tx Bytes
1.3.6.1.2.1.2.2.1.16 - ifOutOctets	Interface Rx Bytes
